AFNetworking Source Code Explanation

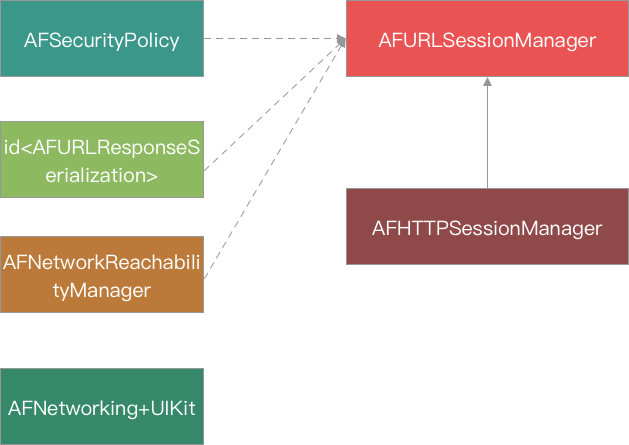

Structure
The core contains 5 functional modules:
- Network communication module (AFURLSessionManager, AFHTTPSessionManager)
- Network reachability module (Reachability)
- Network security policy module (Security)
- Network request/response serialization/deserialization module (Serialization)
- UIKit extensions for iOS (UIKit)
AF is a wrapper around NSURLSession, so the core class AFURLSessionManager is a wrapper for NSURLSession. The other four modules support networking (request/response serialization, HTTPS security authentication, UIKit extensions).
AFHTTPSessionManager inherits from AFURLSessionManager. Most network requests are made using AFHTTPSessionManager, but this class itself does not directly perform the networking; it wraps and delegates request logic to its superclass AFURLSessionManager or other classes.
Example: GET request
AFHTTPSessionManager *manager = [[AFHTTPSessionManager alloc]init];
[manager GET:@"https://somehost.com/goods" parameters:nil progress:nil success:^(NSURLSessionDataTask * _Nonnull task, id _Nullable responseObject) {
} failure:^(NSURLSessionDataTask * _Nullable task, NSError * _Nonnull error) {
}];
Create a manager by calling the initializer. Let's see what it does:
- (instancetype)init {
return [self initWithBaseURL:nil];
}
- (instancetype)initWithBaseURL:(NSURL *)url {
return [self initWithBaseURL:url sessionConfiguration:nil];
}
- (instancetype)initWithSessionConfiguration:(NSURLSessionConfiguration *)configuration {
return [self initWithBaseURL:nil sessionConfiguration:configuration];
}
- (instancetype)initWithBaseURL:(NSURL *)url
sessionConfiguration:(NSURLSessionConfiguration *)configuration
{
self = [super initWithSessionConfiguration:configuration];
if (!self) {
return nil;
}
// If a BaseURL is provided and it does not end with "/", append "/"
if ([[url path] length] > 0 && ![[url absoluteString] hasSuffix:@"/"]) {
url = [url URLByAppendingPathComponent:@""];
}
self.baseURL = url;
self.requestSerializer = [AFHTTPRequestSerializer serializer];
self.responseSerializer = [AFJSONResponseSerializer serializer];
return self;
}
All initializers eventually call the above.

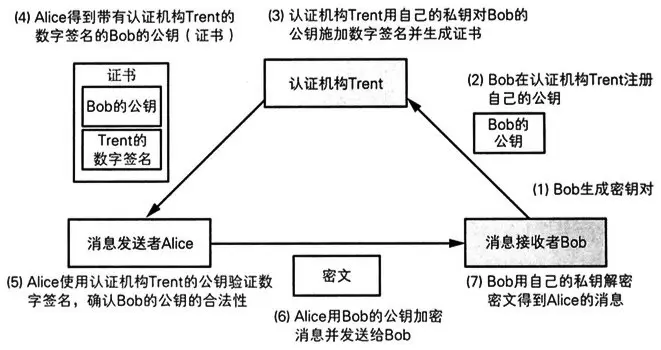

Digital Certificates
Digital signatures ensure message integrity and provide authentication.
Like public-key cryptography, they use a pair of keys (public and private). But in contrast, signatures are created with the private key (to generate the signature) and verified with the public key. Only the holder of the private key can create the signature, while anyone with the public key can verify it.
Public Key Infrastructure (PKI) is a set of standards and specifications to use public-key cryptography more effectively. The X.509 standard is one widely used PKI format.
Certificate Chain
CAs have hierarchical relationships. The highest-level certificate authority is usually the root CA. Lower-level certificates are signed by an upper-level CA; the root CA typically self-signs (self-signed certificate).
How do you verify that a certificate has not been tampered with? When the client connects over HTTPS, the server returns the full certificate chain. Start from the leaf certificate and use the issuer's public key to verify the digital signature of the subordinate certificate. Continue validating up the chain until you reach a trust anchor (a trusted root certificate).
Example GET request — deeper exploration
- Request entry point
- (NSURLSessionDataTask *)GET:(NSString *)URLString
parameters:(id)parameters
success:(void (^)(NSURLSessionDataTask *task, id responseObject))success
failure:(void (^)(NSURLSessionDataTask *task, NSError *error))failure
- Create NSURLSessionDataTask
- (NSURLSessionDataTask *)dataTaskWithHTTPMethod:(NSString *)method
URLString:(NSString *)URLString
parameters:(id)parameters
uploadProgress:(nullable void (^)(NSProgress *uploadProgress)) uploadProgress
downloadProgress:(nullable void (^)(NSProgress *downloadProgress)) downloadProgress
success:(void (^)(NSURLSessionDataTask *, id))success
failure:(void (^)(NSURLSessionDataTask *, NSError *))failure
What AF does compared to raw native APIs
Starting from GET/POST entry points and analyzing the source:
- Initializes many properties
- Adds safety measures (for example, addressing iOS 8 task identifier uniqueness issues using dispatch_sync)
- Provides custom block-based progress callbacks that are easier to use
- Uses decoupling to reduce complexity in main classes, making maintenance easier
AFSecurityPolicy source analysis — HTTPS authentication
