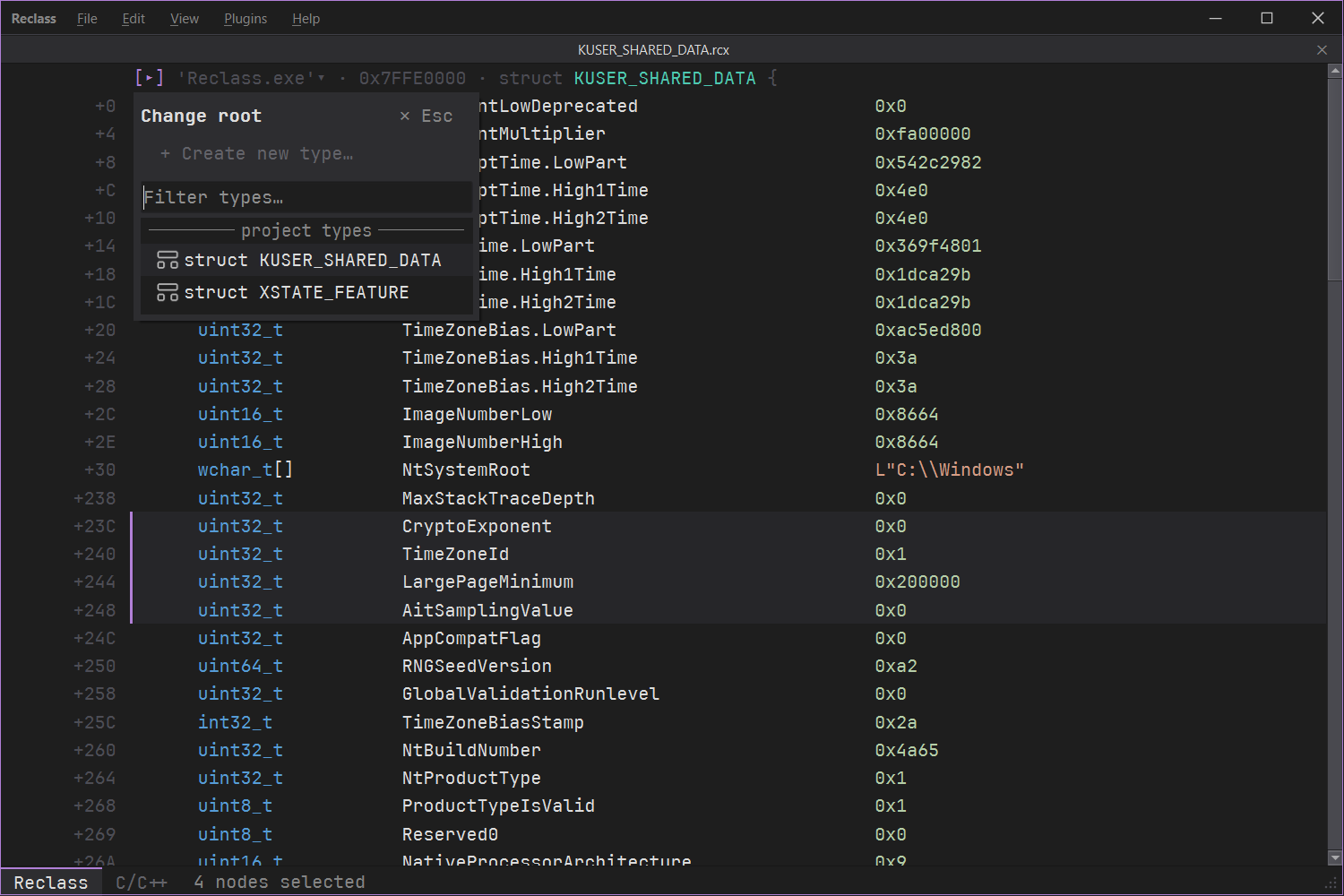

This tool helps you inspect raw bytes and interpret them as types (structs, arrays, primitives, pointers, padding) instead of just hex. It is essentially a debugging tool for figuring out unknown data structures either runtime or from some static source.

Data Sources

• File — open any binary file and inspect its contents as structured data
• Process — attach to a live process and read its memory in real time
• WinDbg — load .dmp crash dump files or connect to live debugging sessions

MCP Integration

Built-in Model Context Protocol bridge via ReclassMcpBridge. The server does not start by default and can be toggled from the File menu. It exposes all tool functionality to any MCP-compatible client (e.g. Claude Code) and falls back to UI prompts when the client requests something not yet covered by tools. To connect, add this to your MCP client config (e.g. .mcp.json):

{
  "mcpServers": {
    "ReclassMcpBridge": {
      "command": "path/to/build/ReclassMcpBridge",
      "args": []
    }
  }
}

Build

1. Prerequisites

• Qt 6 with MinGW - Qt Online Installer https://doc.qt.io/qt-6/qt-online-installation.html , note to select MinGW kit + CMake/Ninja from Tools section (online installers index: https://download.qt.io/official_releases/online_installers/)
• CMake 3.20+ - https://cmake.org/download/ - bundled with Qt
• windeployqt docs - https://doc.qt.io/qt-6/windows-deployment.html

2. Quick Build (relies on powershell| for manual build skip to step 3)

   git clone --recurse-submodules https://github.com/IChooseYou/Reclass.git cd Reclass .\scripts\build_qscintilla.ps1 .\scripts\build.ps1 ^ script above tries to autodetect Qt install (as we learned not everyone installs to C:/Qt/)

3. Manual Build

Step by step for peoplewho want to run commands themselves:

1. Clone with --recurse-submodules (+ fallback git submodule update --init --recursive)
2. Build QScintilla: qmake + mingw32-make in third_party/qscintilla/src
3. CMake configure + build with -DCMAKE_PREFIX_PATH
4. optionallly windeployqt the exe

Alternatives

• ReClass.NET (reclass.net) - https://github.com/ReClassNET/ReClass.NET
• ReClassEx - https://github.com/ajkhoury/ReClassEx
