- Type selector chevron [▸] on command row opens searchable popup - Popup lists all root structs with filter, keyboard nav, side-triangle indicator - Selecting a type switches the editor view via setViewRootId - "Create new type" inserts a new root struct with no name - Command row displays the active view root's name - Tests for chevron detection, span compatibility, view switching, undo

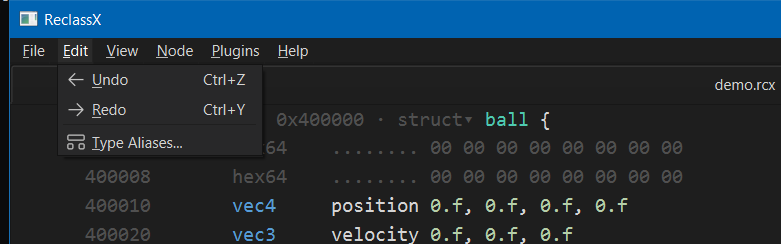

This tool helps you inspect raw bytes,and interpret those bytes as (int,float,struct, array, etc) instead of just hex. it supports ptrs/arrays so you can see the relationship between data. And help deduce paths to these classes from long pointer chains. Either modify the values inside the editor or export as .h to reuse these structures in your code.
Video: https://github.com/IChooseYou/ReclassX/raw/main/video.mp4
QScintilla (github: https://github.com/brCreate/QScintilla) happens to be a really nice fit for our project. We can treat parts of a line as a spans. It's very easy to implement inline editing. Additionally the syntax coloring and keyboard navigation were very useful also!
We hit some big milestones (first plugin+first linux build) however project is still currently a work in progress. Mainly developed/tested on windows (for now).
Build
- Prerequisites
- Qt 6 with MinGW - Qt Online Installer https://doc.qt.io/qt-6/qt-online-installation.html , note to select MinGW kit + CMake/Ninja from Tools section (online installers index: https://download.qt.io/official_releases/online_installers/)
- CMake 3.20+ - https://cmake.org/download/ - bundled with Qt
- windeployqt docs - https://doc.qt.io/qt-6/windows-deployment.html
- Quick Build (relies on powershell| for manual build skip to step 3)
git clone --recurse-submodules https://github.com/IChooseYou/ReclassX.git cd ReclassX .\scripts\build_qscintilla.ps1 .\scripts\build.ps1 ^ script above tries to detect autodetect Qt install (as we learned not every installs to C)
- Manual Build
Step by step for peoplewho want to run commands themselves:
- Clone with --recurse-submodules (+ fallback git submodule update --init --recursive)
- Build QScintilla: qmake + mingw32-make in third_party/qscintilla/src
- CMake configure + build with -DCMAKE_PREFIX_PATH
- optionallly windeployqt the exe
Alternatives
- ReClass.NET (reclass.net) - https://github.com/ReClassNET/ReClass.NET
- ReClassEx - https://github.com/ajkhoury/ReClassEx
